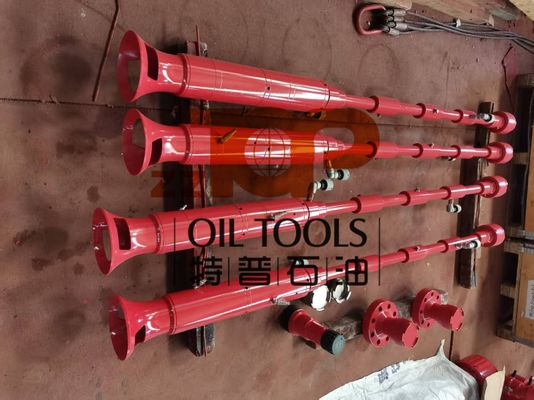

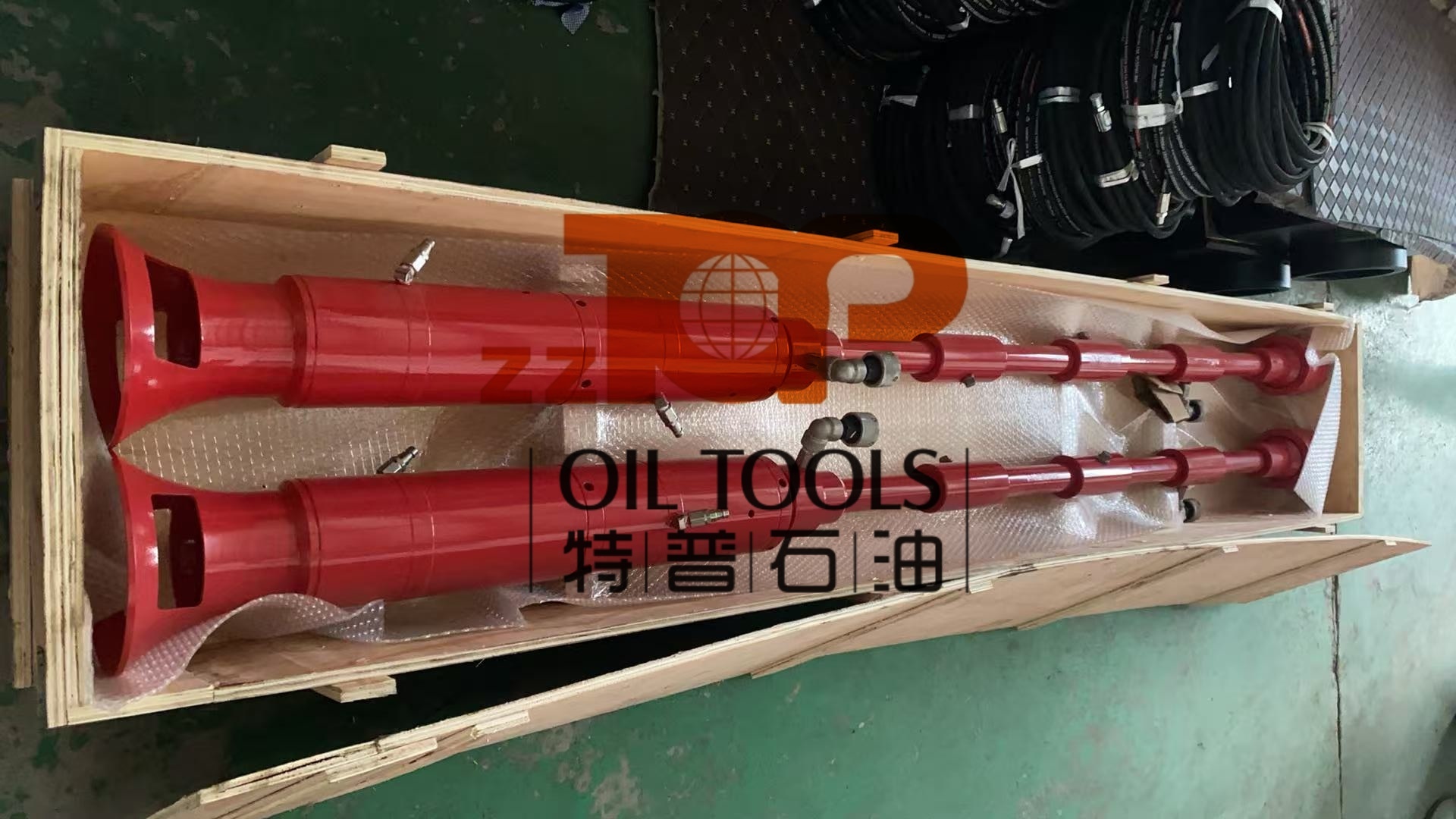

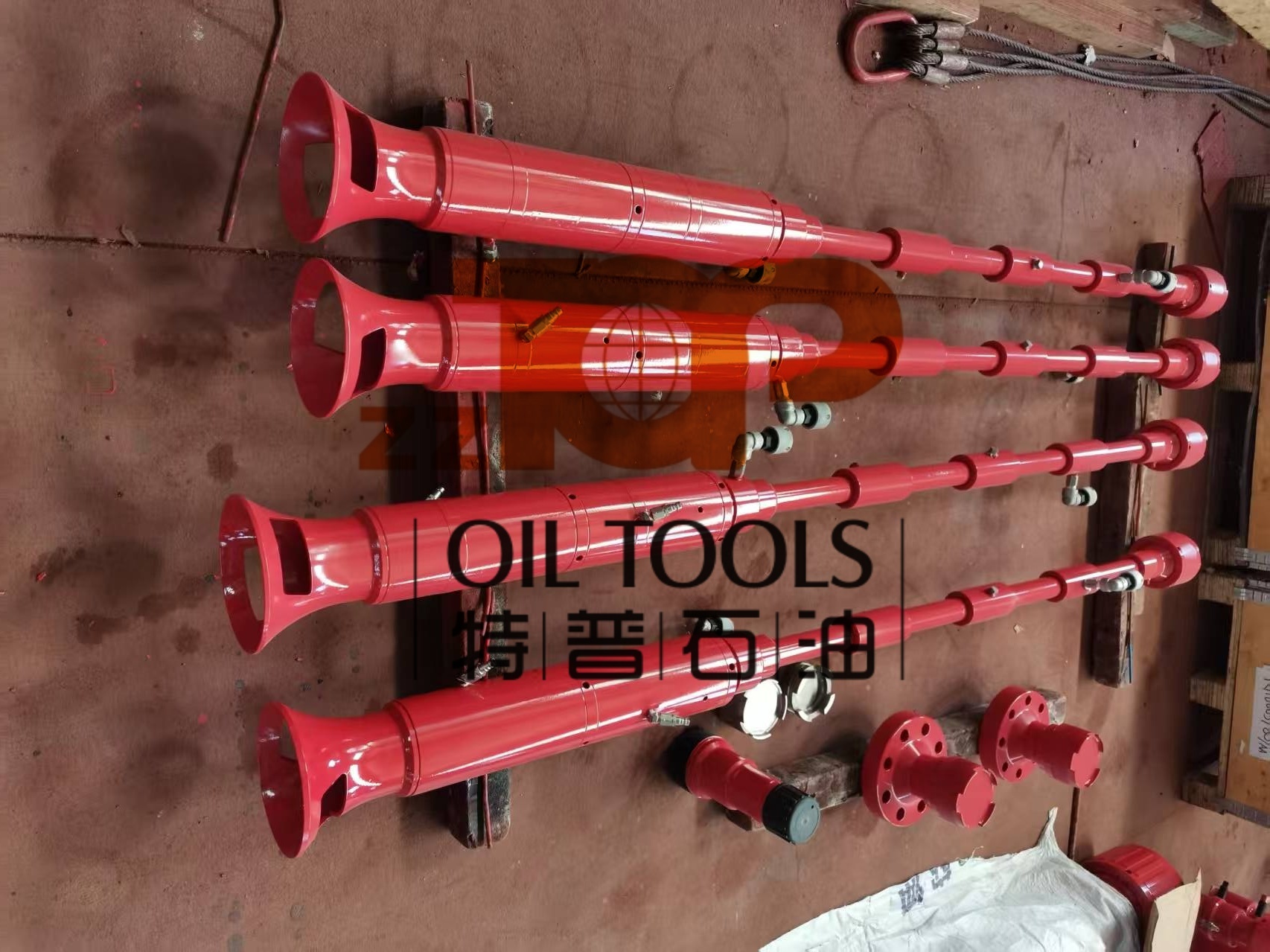

Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations

Số lượng đặt hàng tối thiểu : 1 bộ Giá bán : USD 1-10000/set
chi tiết đóng gói : Pollywood Thời gian giao hàng : 30-50 ngày
Điều khoản thanh toán : L/C, T/T, D/P. Khả năng cung cấp : 10 bộ/tháng
Nguồn gốc: Trung Quốc Hàng hiệu: ZZ TOP OIL TOOLS
Chứng nhận: ISO, API Số mô hình: Đầu kiểm soát phun dầu

Thông tin chi tiết

Sản phẩm: Đầu kiểm soát phun dầu Vật liệu: Thép hợp kim
Áp lực làm việc: 10000psi Ứng dụng: Vận hành đường dây
Cách sử dụng: Thiết bị kiểm soát áp suất đường dây Sự liên quan: hiệp hội búa
Nhiệt độ làm việc: -29~121℃
Làm nổi bật:

10000psi Grease Injection Control Head

,

Hammer Union Grease Injection Control Head

,

Alloy Steel Wireline Pressure Control Equipment

Mô tả sản phẩm

Grease Injection Control Head Assembly with Stuffing box and Wireline Wiper

The Grease Injection Control Head is a sealing device designed for braided cable wireline operations, providing effective wireline sealing functionality. This essential component is used across various oil and gas well applications where pressure control is critical during wireline operations, particularly when fluid or gas loss cannot be tolerated.

Key Features
  • Positioned at the top of the pressure control equipment string
  • Combines Line Wiper Bell, Stuffing Box, Flow Tubes assembly, and ball check valve
  • Essential for maintaining well integrity during high-pressure operations
Technical Specifications
Wire Size Working Pressure Qty. Of Stuffing Box Qty. Of Flow Tubes Qty. Of Hydraulic Port Qty. Of Grease Injection Port Qty. Of Grease Return Port Service Working Temperature
7/32"
5/16"
15/32"
5000Psi 1 4 2 1 1 STD or H2S P+U -20°F~+250°℉
Or As Required
10000Psi 1 6 2 1 1
15000Psi 2 9 3 2 1
Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations 0
